Lynwood W-76 Wood Stove with Cast Iron Door, Black Colour Finish

SKU: Lynwood-W76 Categories: , ,

Description

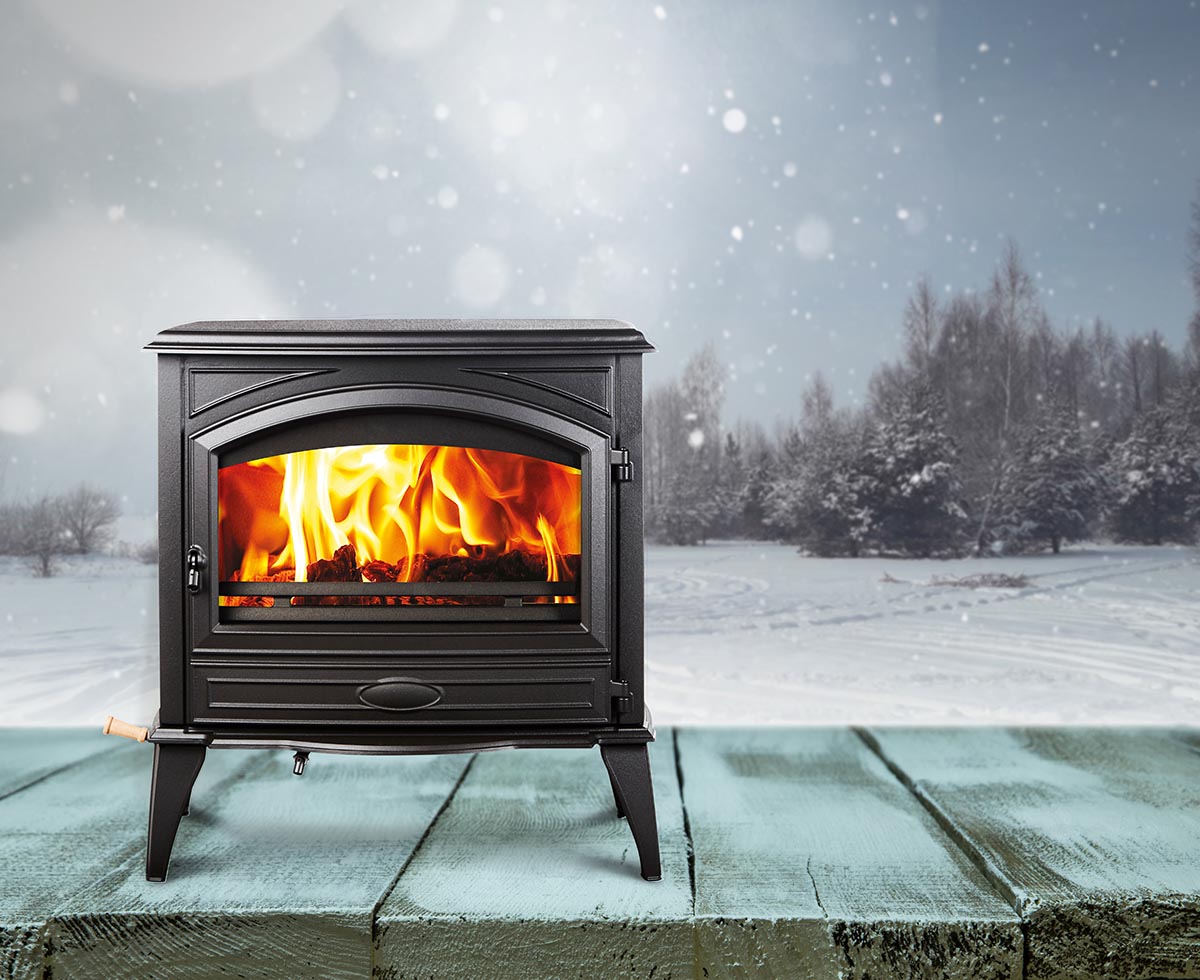

Sierra Flame Lynwood W-76 Wood Burning Stove with Cast Iron Door, Black Colour Finish


The Sierra Flame Lynwood W76 is a welcome addition for wood burners everywhere, and is what a wood burning stove should be: efficient, low emissions, and provides great flames with a maximum viewing area.

Versatile, the Lynwood W76 wood burning stove adapts to any room and will create a cozy atmosphere in any space.
EPA 2020 certified, the Lynwood W76 wood burning stove brings warmth without compromising on air quality.

FEATURES
  • 2020 EPA Compliant
  • 78% Maximum Efficency
  • 13,784 to 57,674 BTU/hr
  • Heats up 2000 ft²
  • Maximum Log size – 21″
  • Massive glass for fire viewing

View Powerpoint presentation – CLICK HERE

REQUIRED ACCESSORIES

Mandatory to complete the unit: Reduce Clearance Heat Shield



FEATURES


Brochure

Sell Sheet

Tech Specs

Manual

DISCLAIMER:
Flames and flame colors on the website may appear differently in real life.


Specs

W-76
Type Solid Fuel Room Heater
Type of Combustion Non-catalytic
Fuel Type Dry Cordwood (15% moisture)
Main Material Cast Iron
Firebox Isolation Vermiculite
Flue Exit 6” (150 mm) Back to top connector
Recommended Heating Area 450 to 2,000 ft.2 (42 to 185 m2)
Nominal Firebox Volume 1.55 ft.3 (0.044 m3)
Maximum Burn Time 1 14 hours
Maximum Heat Output (dry cordwood) 2 57,700 BTU/h (16.91 kW)
Overall Heat Output Rate (min. to max.) 2 3 13,784 BTU/h to 57,684 BTU/h
(4.04 kW to 16.91 kW)
Average Overall Efficiency 3 71% (HHV) 4 76% (LHV) 5
Optimum Efficiency 5 78%
Average Particulate Emissions Rate 7  1.81 g/h (EPA/CSA B415.1-10)
Average CO5 120 g/h

DISCLAIMER:
Flames and flame colors on the website may appear differently in real life.


Manufacturer's Documentation

Brochure

Sell Sheet

Tech Specs

Manual

Heat Shield Installation Instructions
