72-TRU-VIEW-SLIM – 3 Sided Electric Fireplace

72″ Electric Fireplace – 10 5/8″ in depth and 3 sided glass fireplace

Description

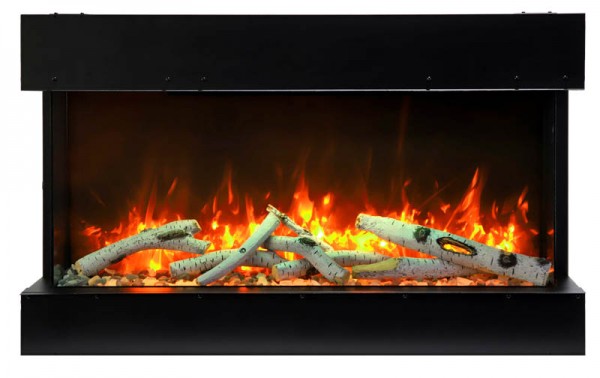

72-TRU-VIEW-SLIM – 72″ wide x 3-7/8″ in depth – 3 sided glass electric fireplace

Amantii electric fireplace


72″ wide and slim indoor or outdoor electric fireplace

Our innovative Tru-View series family just got better with the addition of the Tru-View Slim series! With an incredible depth of 3-7/8 inches and available in five sizes, you’ll find an electric fireplace that is perfect for any space in your home, business or commercial space. At just under 4” in depth, the Slim is perfectly suited to installations in areas where wall depth is at a premium. The Tru-View-Slim series of electric fireplaces is designed to be installed into a 2 x 4″ wall.

The stylish 72-TRU-VIEIW-SLIM electric fireplace fits beautifully as a corner fireplace! And rated for indoor or outdoor use.

The 72-TRU-VIEIW-SLIM boasts the Amantii FIRE & ICE® Flame presentation with three color LED light strips allowing for multi-color flame options. With just a click of the included remote control, choose from blue, rose, violet, yellow or orange colored flames.

The Slim model comes standard with a 10 piece log set and Charcoal grey fire glass, vermiculite, black fire glass plus a remote.

Customize the appearance of the 72-TRU-VIEW-SLIM further by utilizing the included Designer Media Kit which includes a 10 Piece Birch Style Log Set, 2 colors of real fireglass and 2 colors of vermiculite.
Further media options available for additional purchase.

KEY FEATURES
Very thin – only 4” in depth Rated for either indoor or outdoor use
Fire & Ice® Flame Presentation FIRE & ICE® Flame Presentation  – Three light strips allow for yellow, orange, blue, violet & rose colored flames electric fireplace mood lighting Illuminate decorative media like never before with ambient canopy lighting in 13 colors
fireplace heater and fan Heater & Fan
Flame operates with or without heat
Fire and Ice media Comes with a 10 piece log set and Charcoal
grey fire glass, vermiculite, black fire glass plus a remote.
Hardwire ready electric fireplace Thermostat hard-wire ready
Electrical hard-wire ready
electric fireplace zone heating  Perfect for zone heating approx. 400-500 sq ft.
4800 BTU
FEATURES
  • Can be INSTALLED into a 2 x 4 wall
  • All models are rated for either indoor or outdoor use
  • State-of-the-art FIRE & ICE ® flame set, with a click of the remote, change the flame from traditional colors such as yellow and orange to more contemporary colors like blue, purple, rose and violet.
  • 2 Stage heater
  • Hard-wire ready
  • Thermostat hard-wire ready
  • Can produce up to 4800 BTU of heat, enough to heat up to 500 sq feet
  • Flame operates with or without heat
  • Remote control for flame and heater
  • 2 flame sets
  • Ambient canopy lighting in 13 colors illuminates media like never before
4 Installation Options:
  • all 3 sides of glass visible
  • Left side visible
  • Right visible
  • front only for an extra deep (14 1/4″) fireplace

4 installation methods for Tru_View fireplaces


This corner fireplace can open left or open right or can have 3 sides open.corner electric fireplace


Customize the appearance of the 72-TRU-VIEW-SLIM further by utilizing the included Designer Media Kit which includes a Deluxe 11 piece log set, pebbles, black glass and ICE media. Further media options available for additional purchase.

TRU-VIEW-SLIM electric fireplaces are rated for Indoor or Outdoor use. For outdoor applications please follow these instructions.

FIRE & ICE® flame presentation Ambient Canopy Lighting
Tru-View Fire & Ice® Flame Presentation

Vibrant multi-colored state-of-the-art FIRE & ICE® flame that is easily changed from blue to purple to rose to violet to orange or yellow with just a click of the remote. Three color strips generate more flame options that ever.

Canopy Lighting for BI-DEEP models

Ambient canopy lighting illuminates media like never before. Cast a colorful glow over the supplied decorative media in the tray below. Cycle through a rainbow of 13 different colors. Blend flame colors with contrasting canopy lighting for a unique presentation – the combinations are limitless.

INCLUDED ACCESSORIES

The 72-Tru-View-SLIM electric fireplace comes with a 10 piece log set and Charcoal grey fire glass, vermiculite, black fire glass plus a remote.

10 piece Birch log set for electric fireplace



DISCLAIMER:
Flames and flame colors on the website may appear differently in real life.


Specs

72-TRU-VIEW-SLIM
Volts 120V
Amps 12.5
Watts 1500 max
Heater 1500 watts high
750 watts low
No Heater 19 watts

Lamps LED 60 watts
Rotor Motor 2 at 5 watts
Height, Width, Depth 26 5/8 x 75 1/4 x 10 1/8“
Glass View Opening 15 5/8” X 71 5/8’”
Glass Size 15 5/8” X 71 5/8”
Shipping Size 29 1/8” x 79 4/8” x 12 5/8”
Shipping Weight 167.1 lbs – glass included
139.1 lbs – unit
Plug Location Left Side
Cord Length 76″
Approx. Heating Area 400 sq. ft.

DISCLAIMER:
Flames and flame colors on the website may appear differently in real life.


Manufacturer's Documentation

BROCHURE – English

BROCHURE – metric

BROCHURE -Français

BROCHURE

SPECS

MANUAL

INSTALLATION INSTRUCTIONS

OUTDOOR INSTALLATION INSTRUCTIONS

TRU View XL Drill Modifications Diagram

REPLACEMENT GLASS MEASUREMENTS

DISCLAIMER:
Flames and flame colors on the website may appear differently in real life.
