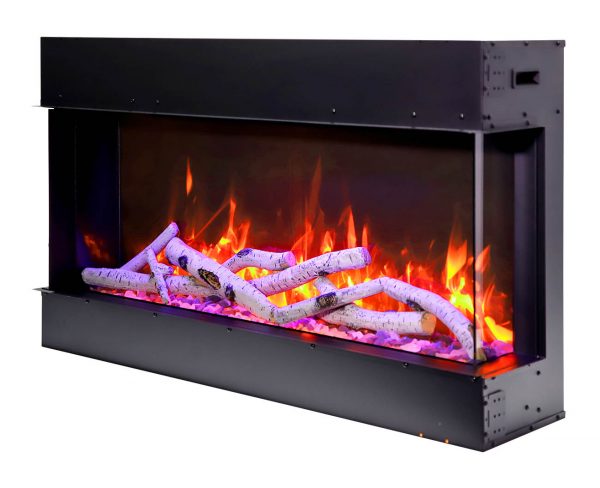

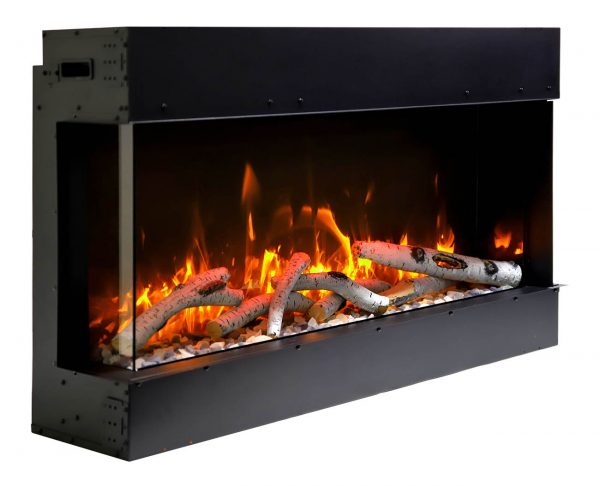

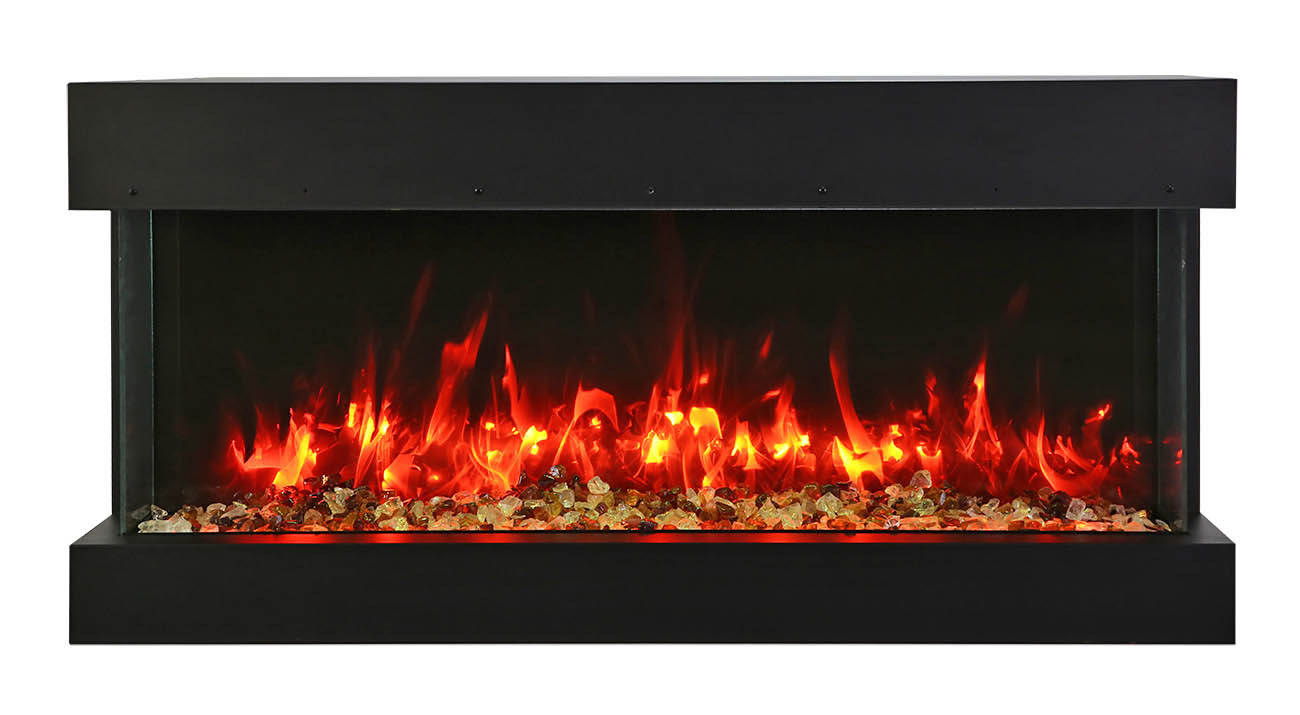

30-TRU-VIEW-SLIM – 3 Sided Electric Fireplace

30″ Electric Fireplace – 10 5/8″ in depth and 3 sided glass fireplace

Description

30-TRU-VIEW-SLIM – 30″ wide x 3-7/8″ in depth – 3 sided glass electric fireplace


30″ wide and slim indoor or outdoor electric fireplace

Our Tru-View series family just got better with the addition of the Slim series! With an incredible depth of 3-7/8” and available in five sizes, you’ll find an electric fireplace that is perfect for any space in your home, business or commercial space. At just 4” in depth, the Slim is perfectly suited to installations in areas where wall depth is at a premium. The Tru-View-Slim series of electric fireplaces is designed to be installed into a 2 x 4″ wall.

The 30-TRU-VIEIW-SLIM fits beautifully as a corner fireplace!

The TRV-Slim model comes standard with a 10 piece log set and Charcoal grey fire glass, vermiculite, black fire glass plus a remote.

Customize the appearance of the 30-TRU-VIEW-XL further by utilizing the included Designer Media Kit which includes a 10 Piece Birch Style Log Set, 2 colors of real fireglass and 2 colors of vermiculite.
Further media options available for additional purchase.

KEY FEATURES
Very thin – only 4” in depth Rated for either indoor or outdoor use
Fire & Ice® Flame Presentation Flame Presentation
State of the art flame presentation: Vibrant, multi-colored state of the art flame presentation – change from Yellow to Orange to Red with just a click of the remote.
electric fireplace mood lighting Illuminate decorative media like never before with ambient canopy lighting in 13 colors
fireplace heater and fan Heater & Fan
Flame operates with or without heat
Fire and Ice media Comes with a 10 piece log set and Charcoal
grey fire glass, vermiculite, black fire glass plus a remote.
Hardwire ready electric fireplace Thermostat hard-wire ready
Electrical hard-wire ready
electric fireplace zone heating  Perfect for zone heating approx. 400-500 sq ft.
5000 BTU
FEATURES
  • Can be INSTALLED into a 2 x 4 wall
  • All models are rated for either indoor or outdoor use
  • State of the art flame presentation: Vibrant, multi-colored state of the art flame presentation – change from Yellow to Orange to Red with just a click of the remote.
  • 2 Stage heater
  • Hard-wire ready
  • Thermostat hard-wire ready
  • Can produce up to 5000 BTU of heat, enough to heat up to 500 sq feet
  • Flame operates with or without heat
  • Remote control for flame and heater
  • 2 flame sets
  • Ambient canopy lighting in 13 colors illuminates media like never before
4 Installation Options:
  • all 3 sides of glass visible
  • Left side visible
  • Right visible
  • front only for an extra deep (14 1/4″) fireplace

4 installation methods for Tru_View fireplaces


This corner fireplace can open left or open right or can have 3 sides open.corner electric fireplace


Customize the appearance of the 30-TRU-VIEW-SLIM further by utilizing the included Designer Media Kit which includes a Deluxe 11 piece log set, pebbles, black glass and ICE media. Further media options available for additional purchase.

TRU-VIEW-SLIM fireplaces are rated for Indoor or Outdoor use. For outdoor applications please follow these instructions.

Flame Presentation Ambient Canopy Lighting

Vibrant, multi-colored state-of-the-art flame presentation – change from Yellow to Orange to Red with just a click of the remote.

Can all be done separately and mixed to make lots of combinations.



Canopy Lighting for BI-DEEP models

Ambient canopy lighting illuminates media like never before. Cast a colorful glow over the supplied decorative media in the tray below. Cycle through a rainbow of 13 different colors. Blend flame colors with contrasting canopy lighting for a unique presentation – the combinations are limitless.

INCLUDED ACCESSORIES

The 30-Tru-View-SLIM electric fireplace comes with a 10 piece log set and Charcoal grey fire glass, vermiculite, black fire glass plus a remote.

10 piece Birch log set for electric fireplace



Specs

30-TRU-VIEW-SLIM
Volts 120
Amps 12.5
Watts 1465 max
Heater 1465 watts high
750 watts low
No Heater 19 watts

Lamps LED 33 watts
Rotor Motor 2 at 5 watts
Height, Width, Depth 26 5/8 x 33 1/4 x 11 1/8“
Glass View Opening 15 5/8” X 29 5/8’”
Glass Size 15 5/8” X 29 5/8”
Shipping Size 29 1/8” x 37 4/8” x 12 5/8”
Shipping Weight 85.3 lbs – glass included
70.9 – unit
Plug Location Left Side
Cord Length 76″
Approx. Heating Area 400 sq. ft.

Manufacturer's Documentation

BROCHURE – English

BROCHURE – metric

BROCHURE -Français

SPECS

MANUAL

INSTALLATION INSTRUCTIONS

OUTDOOR INSTALLATION INSTRUCTIONS

TRU View XL Drill Modifications Diagram

REPLACEMENT GLASS MEASUREMENTS
